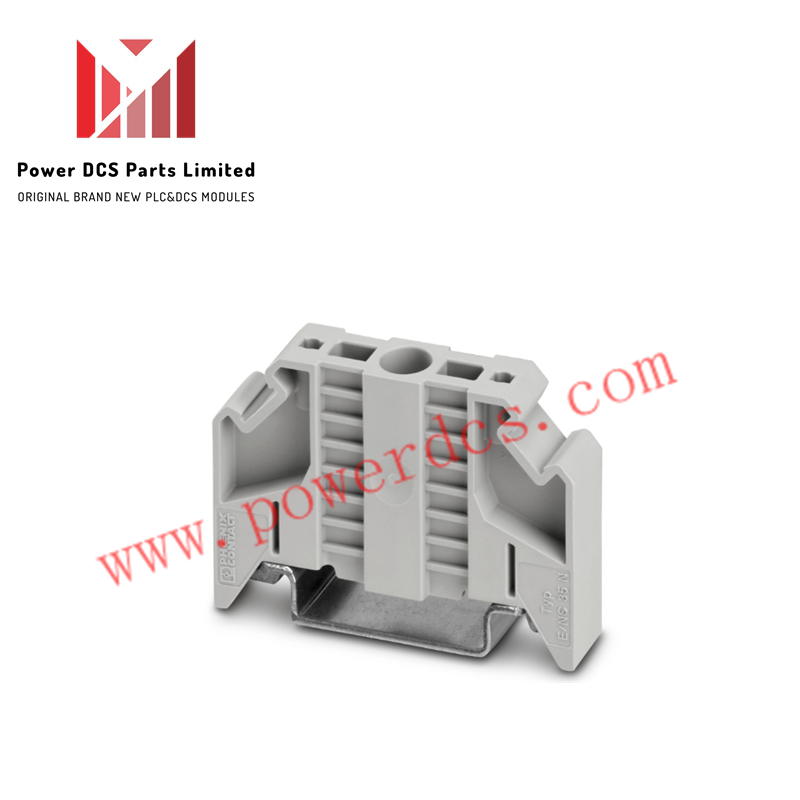

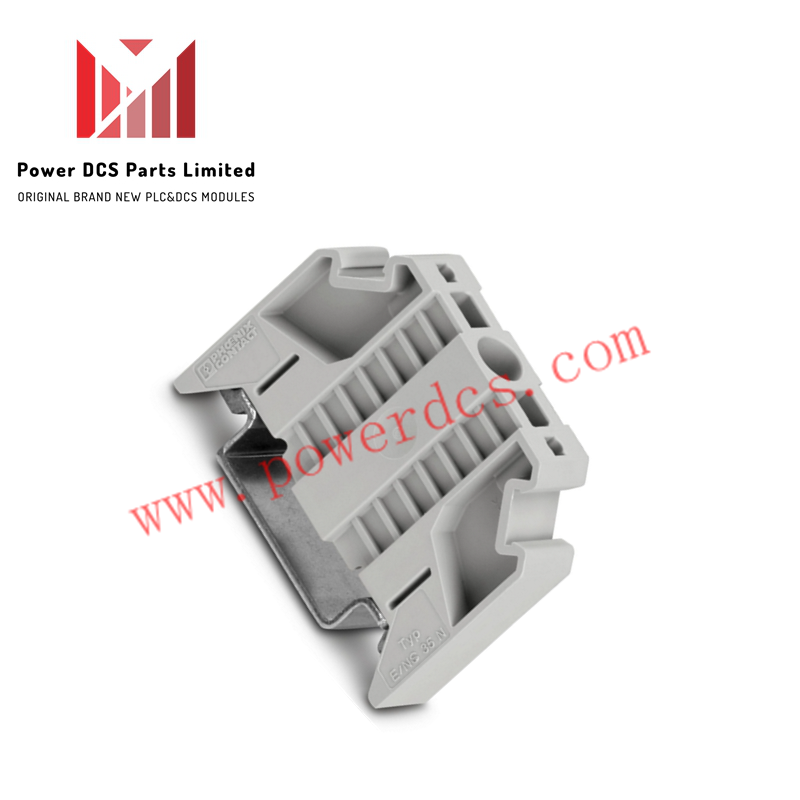

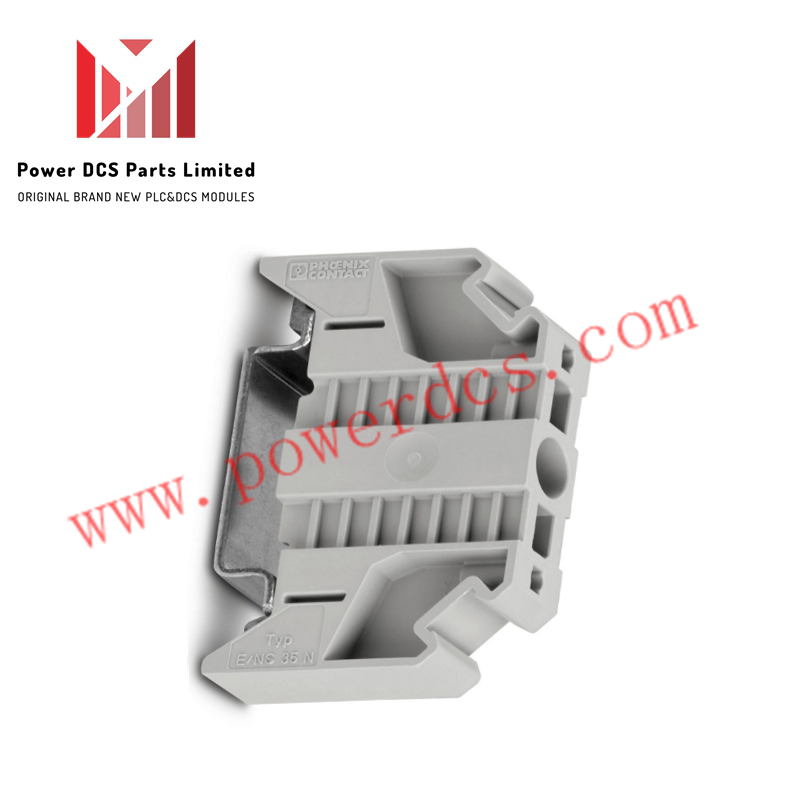

Phoenix Contact E/NS35N End Bracket

Description

The Phoenix Contact E/NS35N end bracket is designed to securely fasten terminal blocks and other DIN rail-mounted components. It ensures mechanical stability and prevents lateral movement on NS 35 mounting rails.

Specifications

• Model: E/NS35N

• Manufacturer: Phoenix Contact

• Part Number: 1201448

• Mounting Type: For NS 35 DIN rails

• Width: 9.5 mm

• Height: 36.5 mm

• Material: Polyamide (PA)

• Color: Gray

• Fixing Method: Screw locking

• Ambient Temperature Range: -40°C to +100°C

• Flammability Rating: UL 94 V0

• Application: Securing terminal blocks and components on DIN rails

• Packaging Unit: Typically sold in packs of 50

Features

• Secure Fixation: Prevents shifting of terminal blocks on DIN rails

• Compact Design: Slim 9.5 mm width saves space in control cabinets

• Durable Material: Made from high-quality polyamide for mechanical strength

• Wide Temperature Range: Operates reliably from -40°C to +100°C

• Easy Installation: Screw-locking mechanism ensures quick and firm mounting

• Standard Compatibility: Fits NS 35/7.5 and NS 35/15 DIN rails

• Flame Retardant: UL 94 V0 rating for enhanced safety in electrical enclosures

• Industrial Grade: Suitable for harsh environments and long-term use
