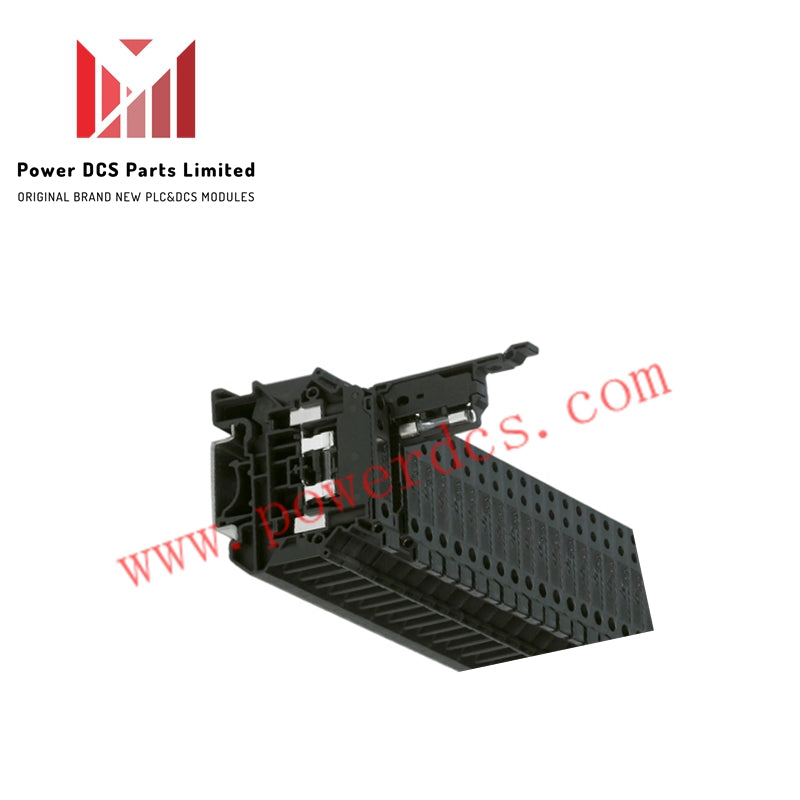

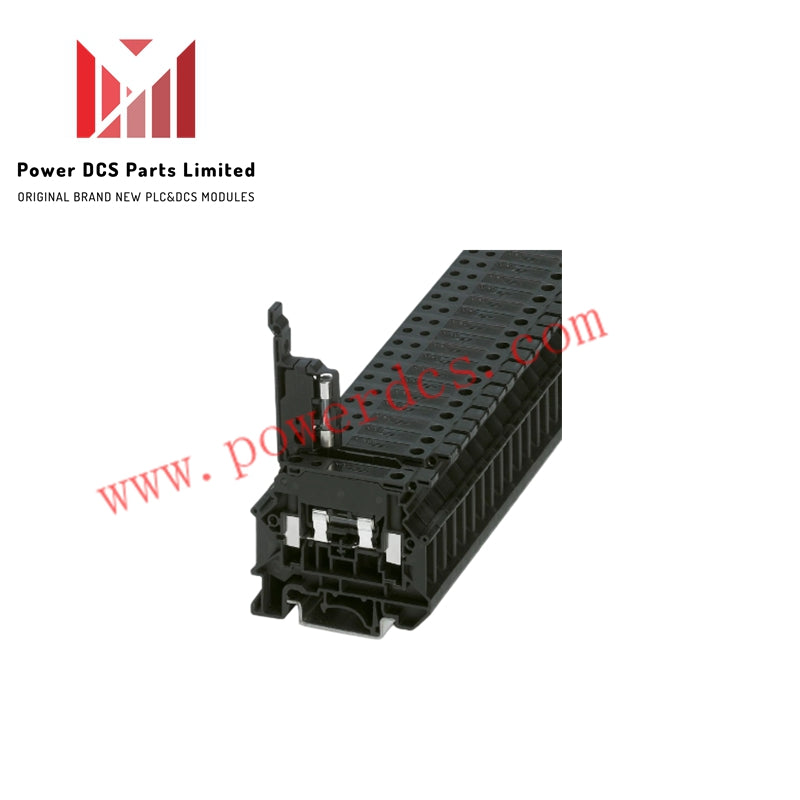

Phoenix Contact UK5-HESI Fuse Modular Terminal Block

Description

The Phoenix Contact UK5-HESI fuse modular terminal block is designed for secure circuit protection in industrial control systems. It integrates fuse functionality with compact DIN rail mounting for efficient panel layout.

Specifications

• Model: UK5-HESI

• Manufacturer: Phoenix Contact

• Part Number: 3004100

• Width: 6.2 mm

• Height: 47 mm

• Length: 56 mm

• Rated Voltage: 500 V

• Rated Current: 6.3 A

• Fuse Type: 5 x 20 mm glass cartridge fuse

• Connection Method: Screw connection

• Stripping Length: 10.3 mm

• Mounting Type: NS 35/7.5 DIN rail

• Insulation Material: PA (polyamide)

• Color: Gray

• Conductor Cross Section: 0.2 to 4 mm² (solid), 0.2 to 2.5 mm² (flexible)

• Ambient Temperature: -40°C to +100°C

Features

• Integrated Fuse Protection: Combines terminal block and fuse holder in one compact unit

• DIN Rail Mounting: Fits standard NS 35/7.5 rails for quick installation

• High Voltage Rating: Supports up to 500 V for industrial applications

• Compact Design: Slim 6.2 mm width saves valuable panel space

• Reliable Connections: Screw terminals ensure secure wire fastening

• Wide Wire Range: Accepts both solid and flexible conductors

• Thermal Stability: Operates reliably across wide temperature ranges

• Standard Compliance: Meets IEC standards for safety and performance

• Clear Identification: Gray housing supports labeling and circuit organization
