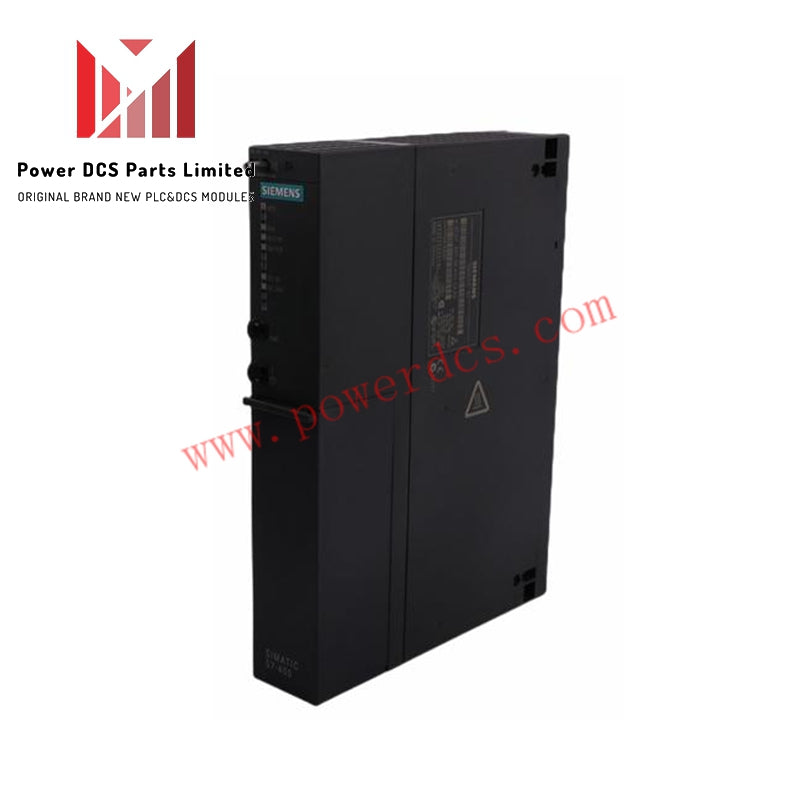

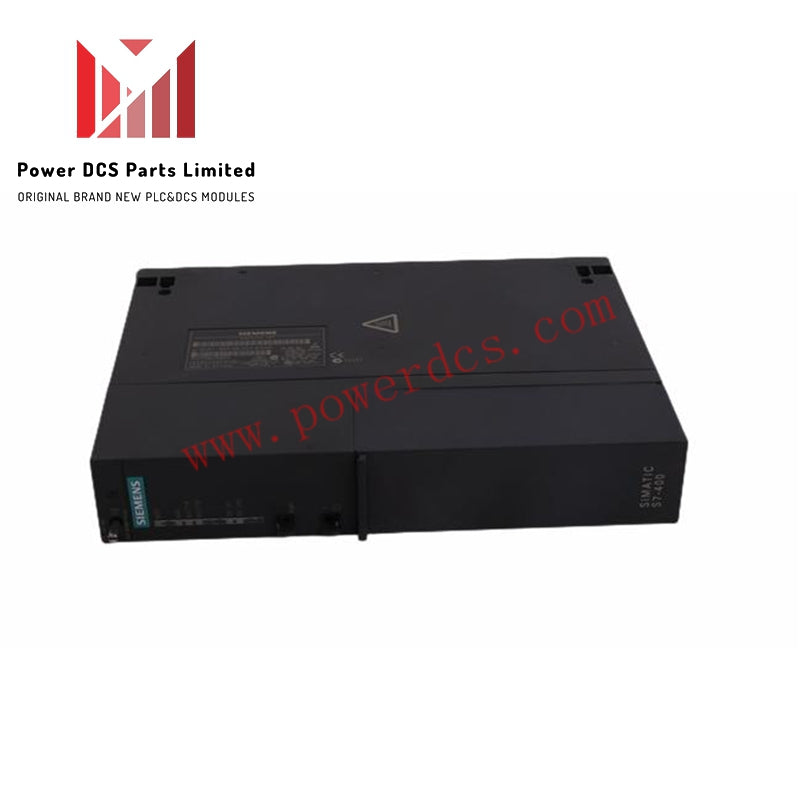

Power Supply 6ES7407-0KA01-0AA0 Siemens SIMATIC S7-400

Description

The 6ES7407-0KA01-0AA0 is a Siemens SIMATIC S7-400 PS 407 Power Supply, designed to provide stable and efficient power to the SIMATIC S7-400 systems. With a 10A output capacity and a wide input voltage range of 120/230V AC, it ensures reliable operation of the system. It also features optional backup battery support for added reliability.

Specifications

• Model Number: 6ES7407-0KA01-0AA0

• Manufacturer: Siemens

• Type: Power Supply

• System: SIMATIC S7-400

• Output:

• 5V DC / 10A

• Input Voltage: 120/230V UC

• Backup Battery:

• 2x lithium AA batteries

• 3.6V / 1.9Ah

Electrical and Performance

• Required Slots: 2

• Potential Separation: Primary/Secondary separation

Physical

• Dimensions:

• Width: 50 mm

• Height: 290 mm

• Depth: 217 mm

• Weight: Approx. 1,360 g

Connection

• Connecting Cables:

• 3x 1.5 mm², solid or stranded wire with end sleeve

• External diameter: 3 mm to 9 mm
