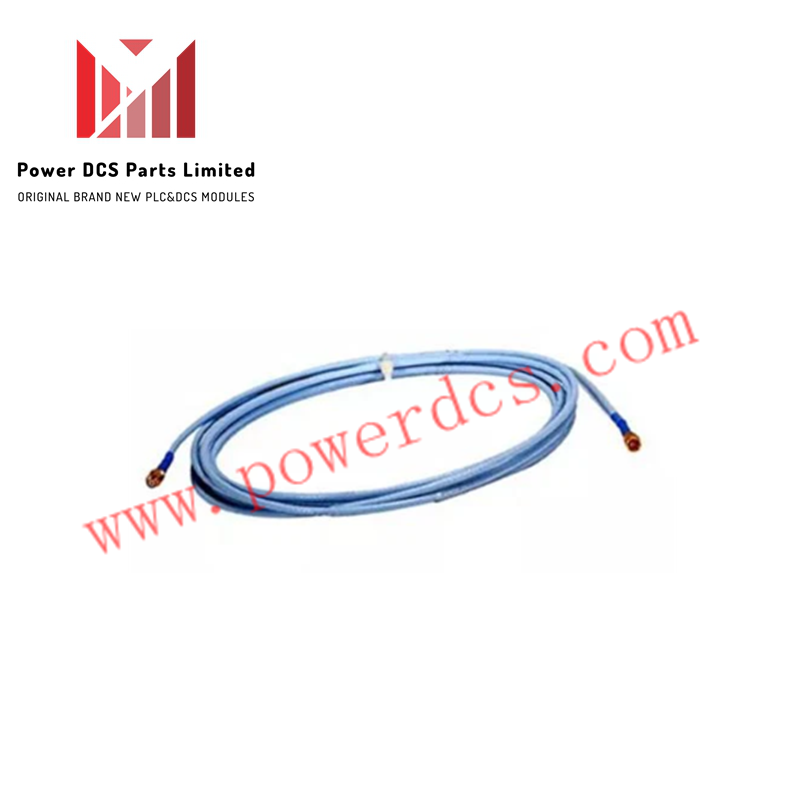

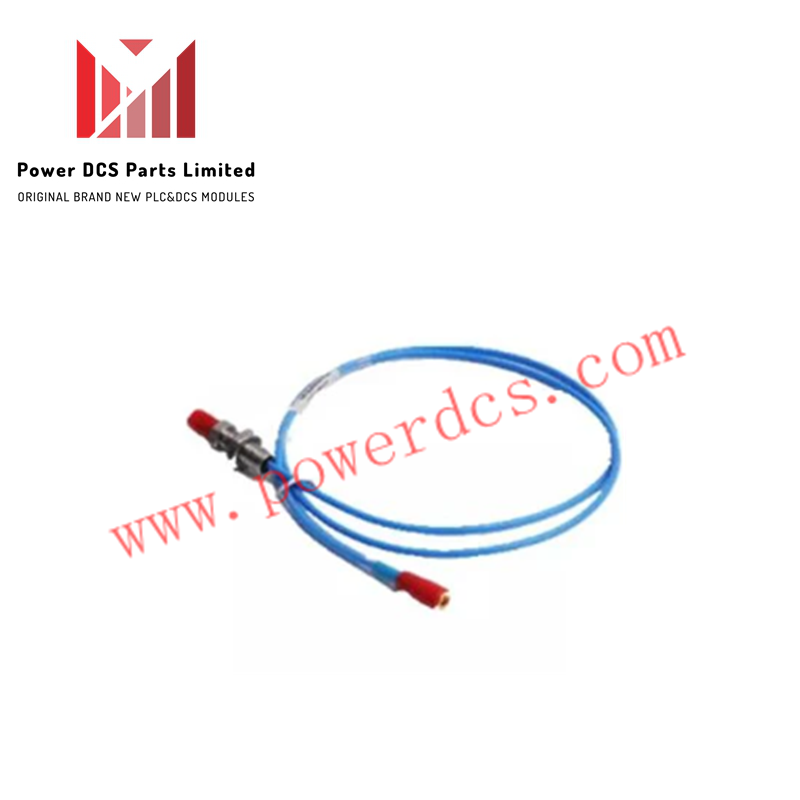

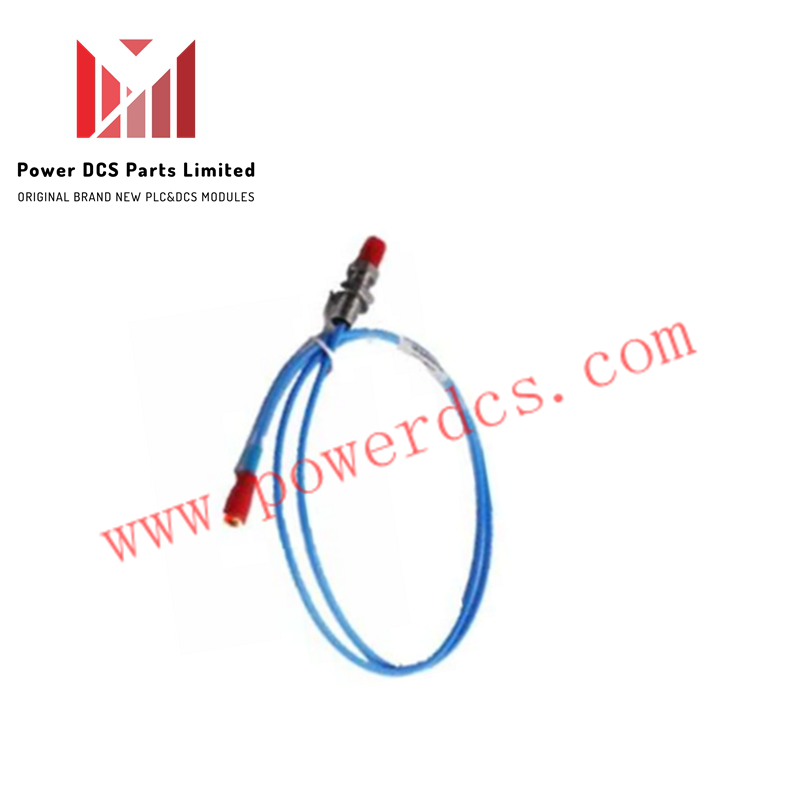

PVTVM TM0180-07-00-09-10-02 Standard 8mm Probe

Description

TM0180-07-00-09-10-02 is a standard 8 mm proximity probe from PVTVM, designed for precise non-contact measurement of shaft vibration, position, and thrust. It is built for harsh industrial environments and meets API 670 standards.

Specifications

• Model: TM0180-07-00-09-10-02

• Manufacturer: PVTVM

• Type: Proximity probe

• Probe Tip Diameter: 8 mm

• Thread Size: M10×1

• Unthreaded Length: 0 mm

• Case Length: 90 mm

• Total Probe Length: 1.0 m

• Connector Type: API 670 standard

• Operating Temperature: -35°C to +120°C

• System Compatibility: Works with TM0181 extension cables and TM0182 drivers

• Protective Boot: Included for oil and dust protection

• Origin: USA

Features

• API 670 Compliance: Ensures high accuracy and compatibility with industry-standard monitoring systems

• Non-Contact Measurement: Ideal for detecting shaft vibration, axial thrust, and position

• Durable Construction: Designed for long life in harsh industrial environments

• Modular Design: Integrates with PVTVM extension cables and drivers for complete system setup

• Flexible Installation: Available in various lengths and thread configurations

• Reliable Signal Integrity: Maintains stable output under demanding conditions

• Protective Boot: Shields connectors from contaminants to extend service life
