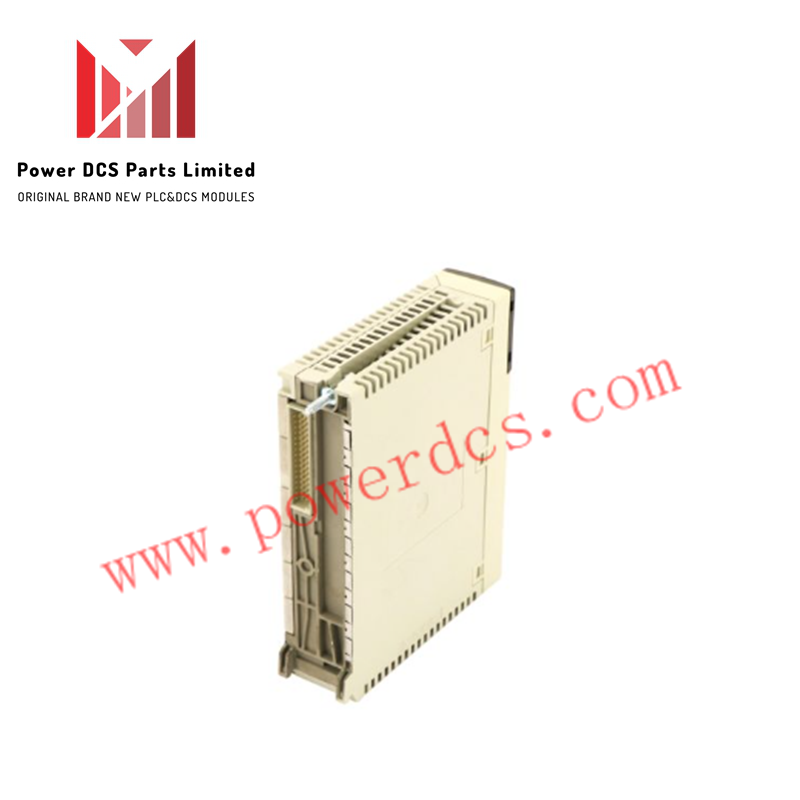

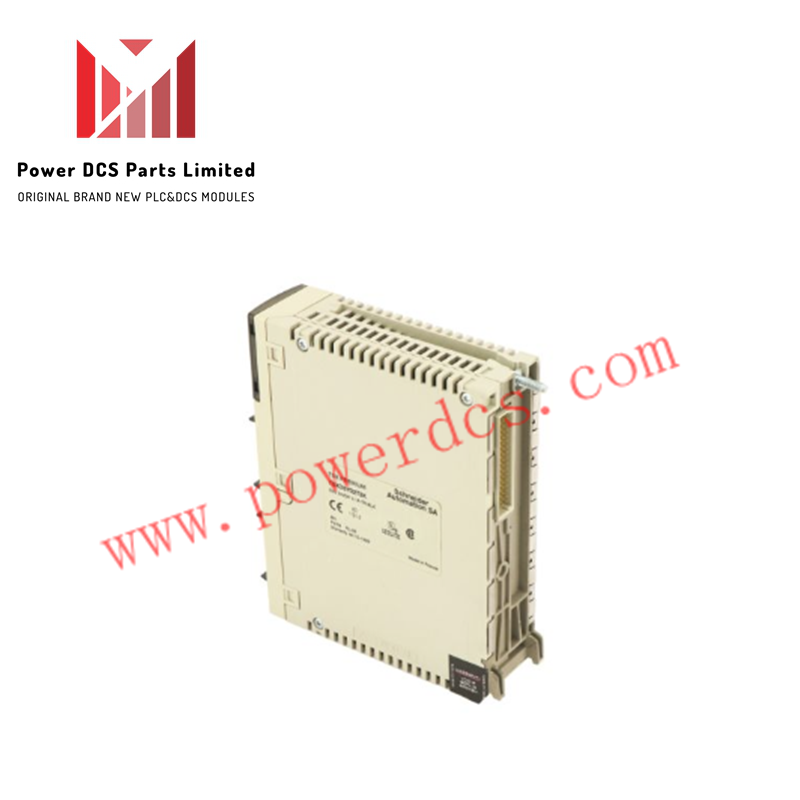

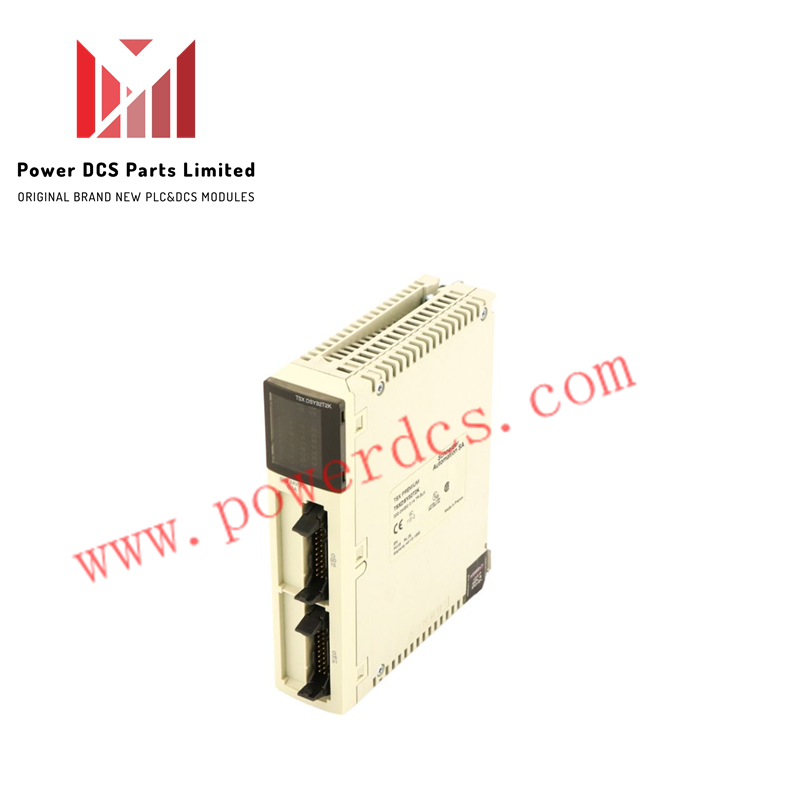

Schneider TSXDSY32T2K Digital Input Module

Description

 The Schneider TSXDSY32T2K is a 32-channel solid-state digital output module designed for the Modicon Premium PLC platform. It delivers fast and reliable 24VDC positive logic outputs for controlling actuators and digital devices in industrial automation.

Specifications

• Manufacturer: Schneider

• Model Number: TSXDSY32T2K

• Product Type: Digital Output Module

• System Compatibility: Modicon Premium PLC

• Output Channels: 32 transistor outputs

• Output Voltage: 24V DC positive (range: 19–30V DC)

• Output Current: 0.3 A per channel

• Logic Type: Positive logic

• Power Consumption: 1.6 W

• Protection: Overvoltage protection via transil diode

• Mounting Type: Rack-mounted

• Dimensions: 5.5 × 18 × 26 cm

• Weight: 0.3 kg

• Recommended Replacement: BMXDDO3202K

Features

• High-Density Output: Controls up to 32 devices from a single module

• Fast Switching: Solid-state transistors enable rapid response for time-sensitive operations

• Overvoltage Protection: Built-in transil diode safeguards against voltage spikes

• Compact Design: Saves space in control cabinets with high channel density

• Reliable Performance: Designed for continuous operation in demanding industrial environments

• System Integration: Seamlessly connects with Modicon Premium architecture

• Certified Safety: Meets international standards for electrical safety and performance

• Upgrade Path: Easily replaceable with newer Modicon X80 modules for extended lifecycle
