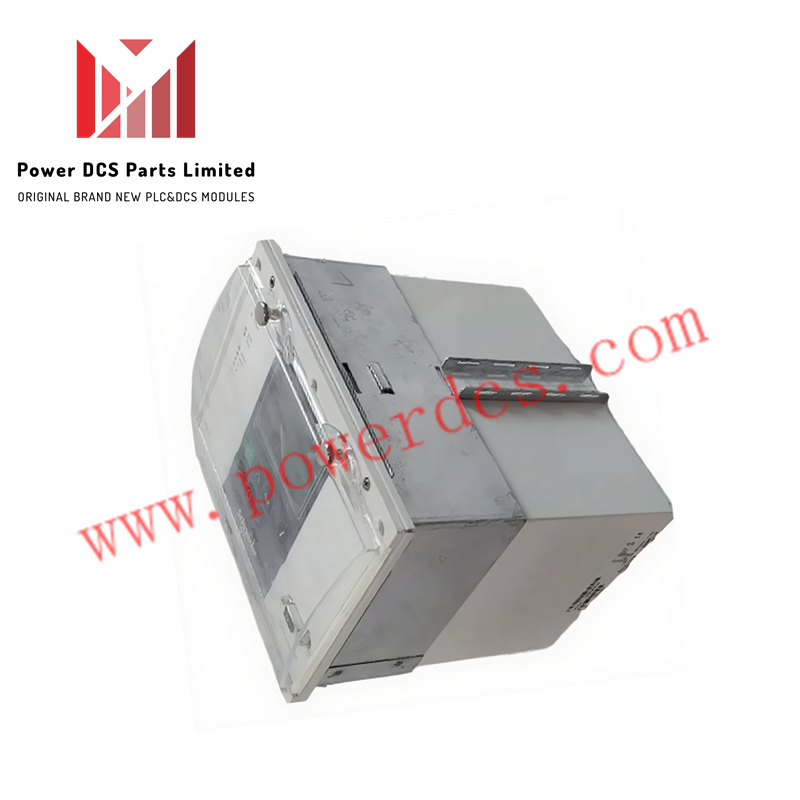

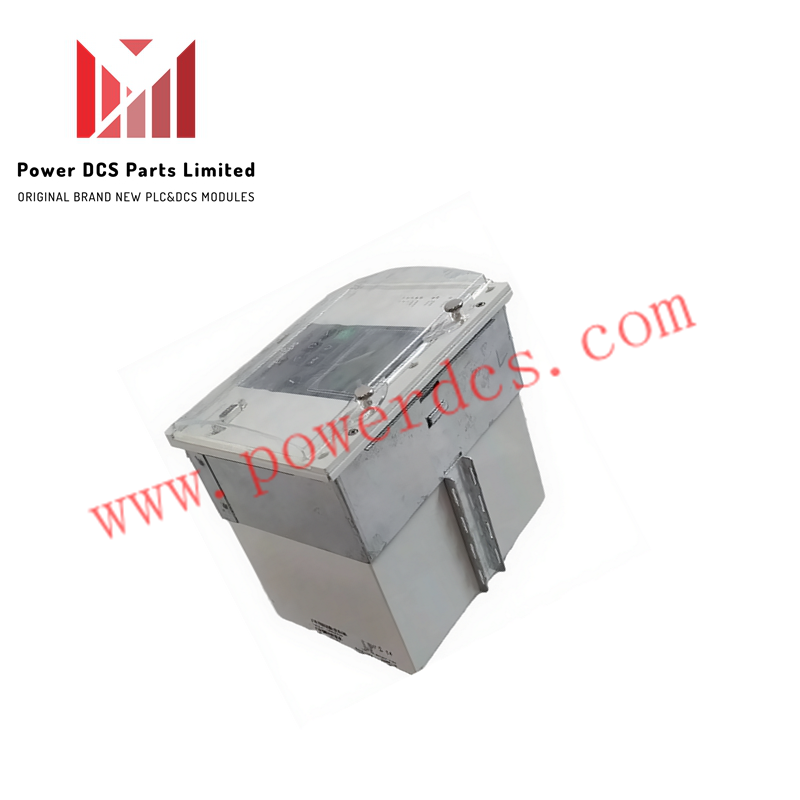

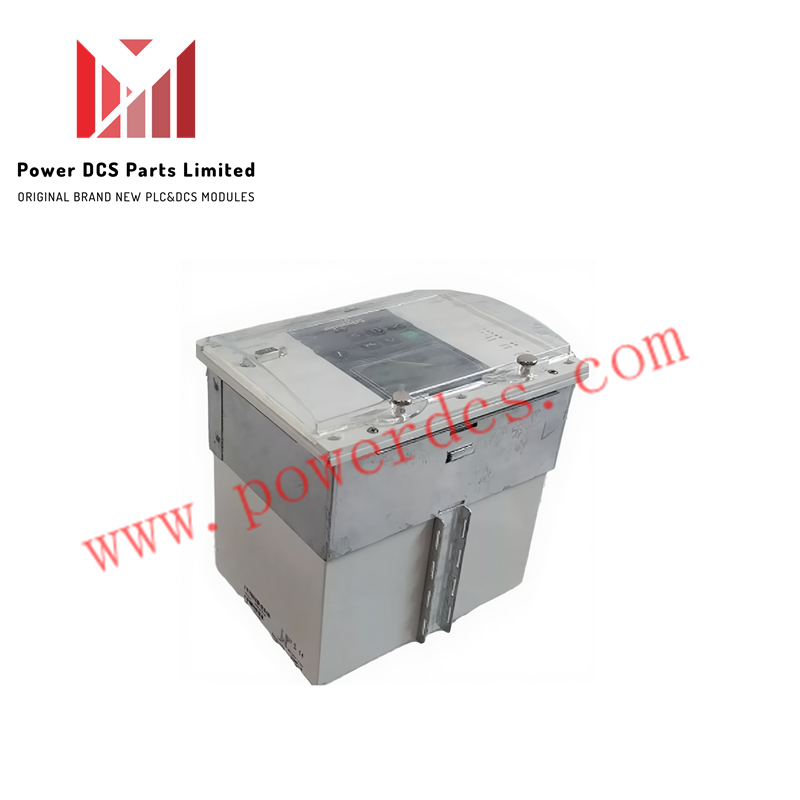

Schneider V255-073749 Feeder and Motor Protection Relay

Description

V255-073749 is a feeder and motor protection relay from Schneider Electric’s VAMP 255 series. It provides selective protection and control for feeders, motors, busbars, and capacitor banks in industrial and utility applications.

Specifications

• Model: V255-073749

• Manufacturer: Schneider Electric

• Series: VAMP 255

• Type: Feeder and motor protection relay

• Rated Voltage: 110–250 V DC / 100–230 V AC

• Frequency: 50/60 Hz

• Power Consumption: ≤15 W

• Digital Inputs: 8 inputs (24–250 V DC)

• Relay Outputs: 6 outputs (5 A at 250 V AC)

• Analog Inputs: 4 inputs (0–20 mA)

• Communication Ports: Ethernet, RS-232, RS-485

• Operating Temperature: -25°C to +70°C

• Storage Temperature: -40°C to +85°C

• Humidity Range: 5–95% non-condensing

• Dimensions: 12 cm × 10.5 cm × 13 cm

• Weight: Approx. 0.3 kg

• Origin: France

Features

• Multi-Function Protection: Supports protection for feeders, motors, busbars, reactors, and capacitor banks

• High-Speed Fault Detection: Enables rapid response to electrical faults for system safety

• Flexible Communication: Ethernet and serial ports for SCADA and remote monitoring integration

• User-Friendly Configuration: Intuitive interface for setup and diagnostics

• Compact Design: Space-efficient for control panels and switchgear installations

• Wide Voltage Range: Operates across AC and DC supplies for versatile deployment

• Reliable Performance: Designed for harsh environments with extended temperature and humidity tolerance

• Standards Compliance: Meets industrial protection standards for power systems
