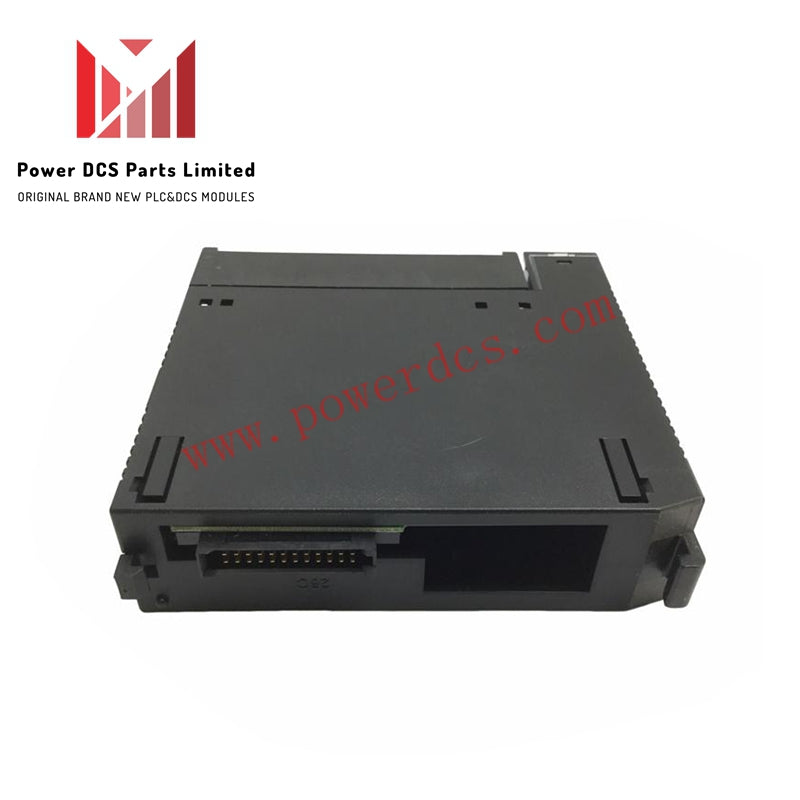

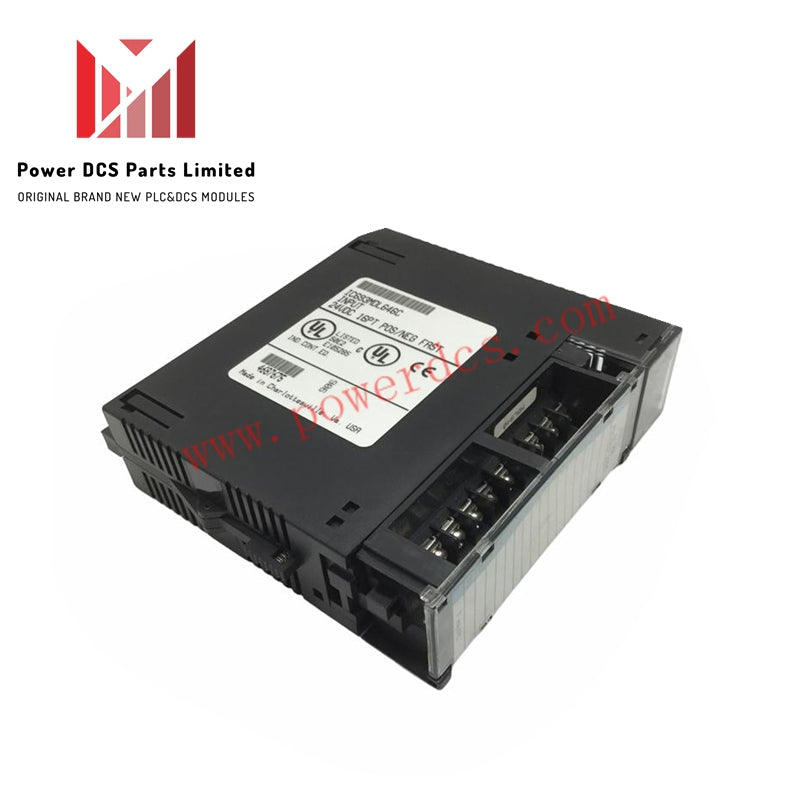

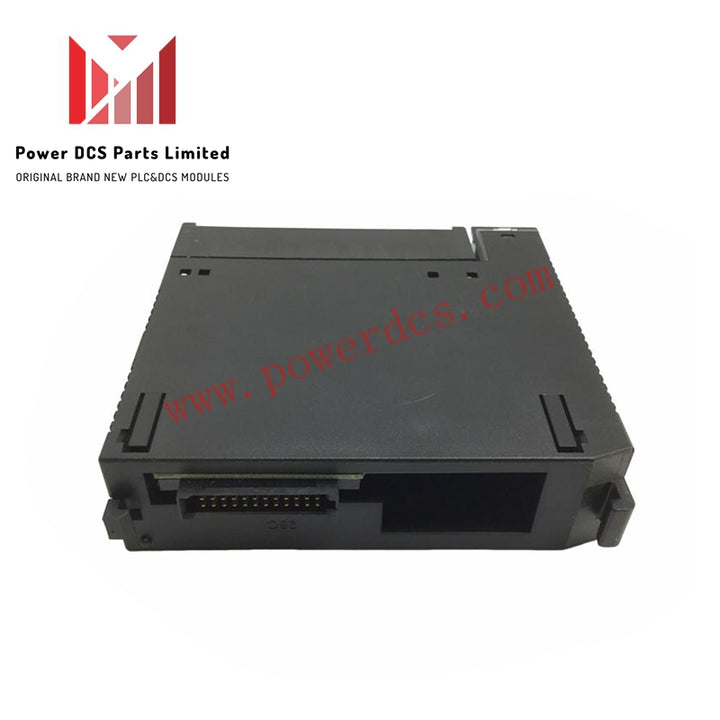

Series 90-30 GE Fanuc IC693MDL646 Discrete Input Module

Description

The IC693MDL646 is a discrete input module from GE Fanuc's Series 90-30, designed for reliable input signal processing in industrial control applications. It supports 16 channels with input voltages ranging from 0 to 30 V DC, providing high isolation and fast response times.

Specifications

• Manufacturer: GE Fanuc

• Series: Series 90-30

• Part Number: IC693MDL646

• Product Type: Discrete Input Module

• Rated Voltage: 24 V DC

• Number of Channels: 16

• Input Voltage Range: 0 to +30 V DC

• Wiring Configuration: Positive / Negative Logic

• Inputs per Module: 16 (One group with a single common)

• Input Signal Range: 0-30 V DC

• Nominal Input Voltage: 24 V DC

• On-State Voltage: 11.5 to 30 V DC

• Off-State Voltage: 0 to +5 V DC

• On-State Current: 3.2 mA minimum

• Off-State Current: 1.1 mA maximum

• Isolation: 1500 V between field side and logic side

• Input Current: 7 mA per channel

• Current Draw: 80 mA @ 5 V DC; 125 mA @ 24 V DC

• On Response Time (Typical): 1 ms

• Off Response Time (Maximum): 1 ms
