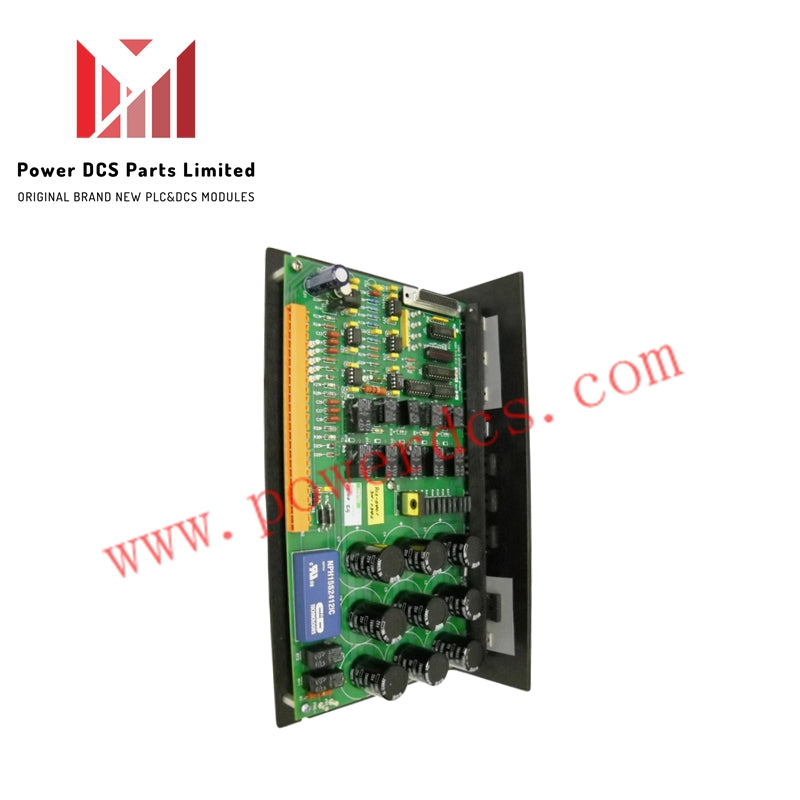

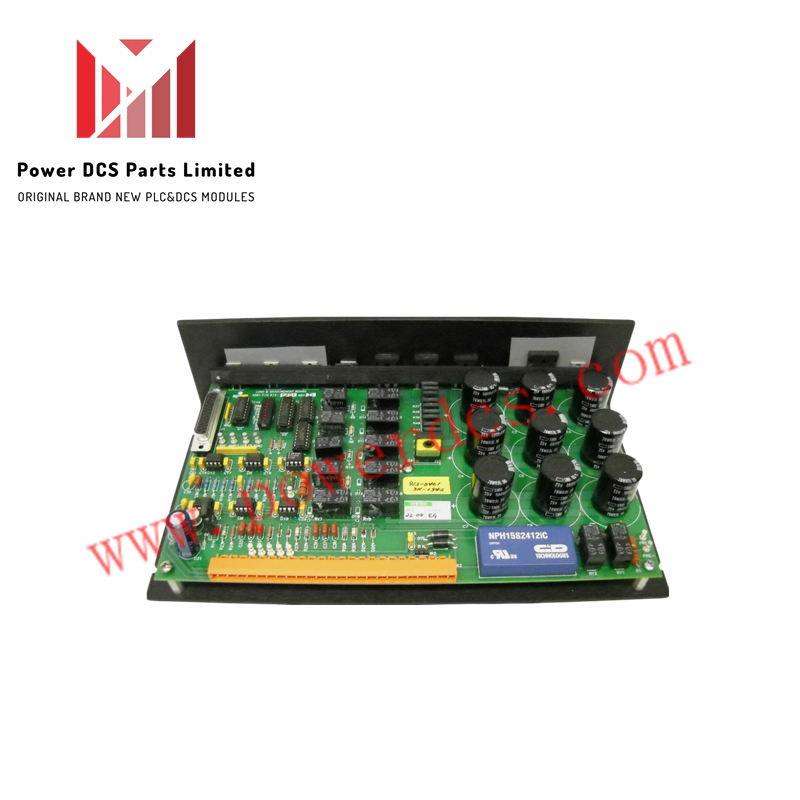

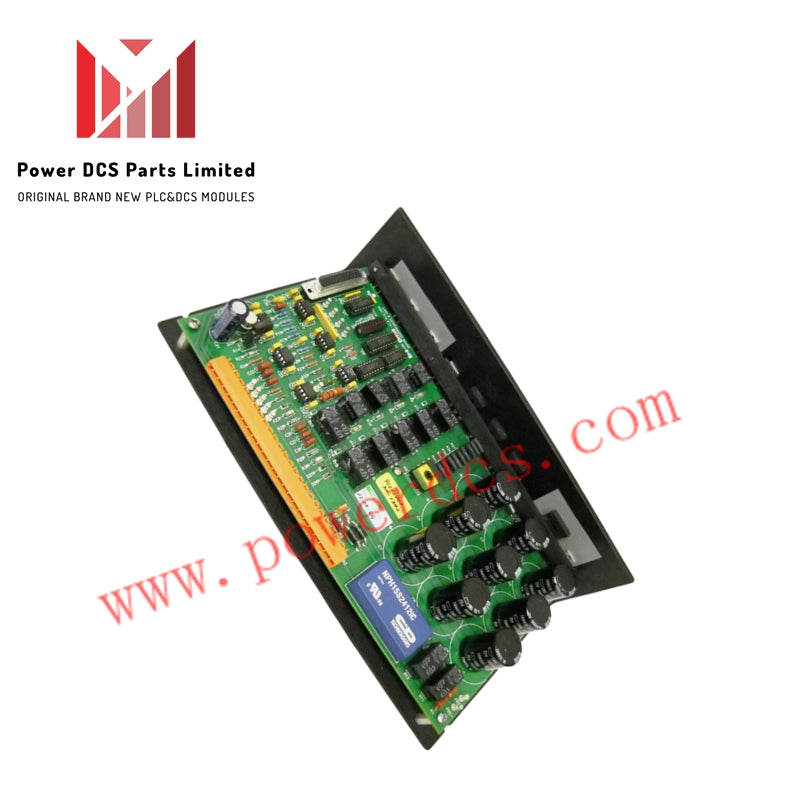

SPIRE 920-0402 Measurement Board

Description

The SPIRE 920-0402 Measurement Board is a high-reliability automation module designed for industrial control systems. It supports extensive I/O functions and integrates seamlessly with standard communication networks.

Specifications

• Model: 920-0402

• Power Supply: 24V DC

• Power Consumption: 12W max

• Operating Temperature: –25°C to +70°C

• Storage Temperature: –40°C to +85°C

• Dimensions: 180 mm × 120 mm × 55 mm

• Weight: 850 g

• Digital I/O Channels: 12

• Analog Inputs: 6

• Analog Outputs: 4

• Communication Protocols: Ethernet (10/100 Mbps), Modbus RTU/TCP

• Status Indicators: LED indicators for power, communication, and fault diagnostics

• Mounting: DIN rail compatible

Features

• Expanded I/O Capability: 12 digital and 10 analog channels for versatile control

• Protocol Integration: Supports Modbus RTU/TCP and Ethernet for industrial connectivity

• Real-Time Diagnostics: LED indicators provide instant system feedback and fault detection

• Durable Design: Operates reliably from –25°C to +70°C in harsh environments

• Compact Form Factor: Fits easily into control panels with DIN rail mounting

• Efficient Power Use: Runs on 24V DC with low power draw

• Flexible Deployment: Ideal for automation, energy management, and manufacturing systems
