TRICONEX 8310N2 High-Density Power Module

Specifications

  • Manufacturer: Triconex

  • Product No.: 8310N2

  • Condition： 10 Items in Stock

  • Product Type: High-Density Power Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 800g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

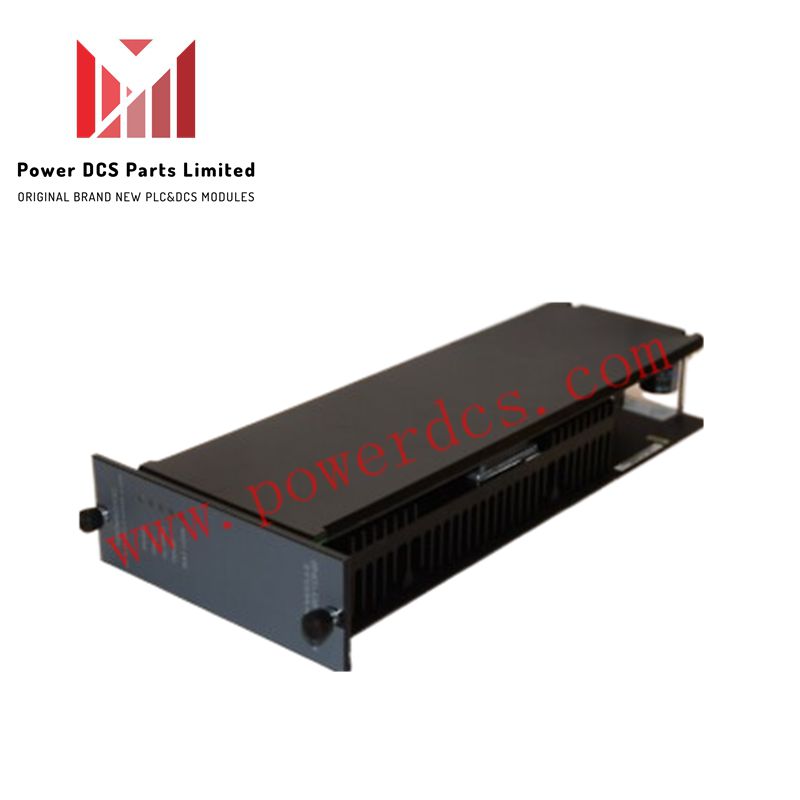

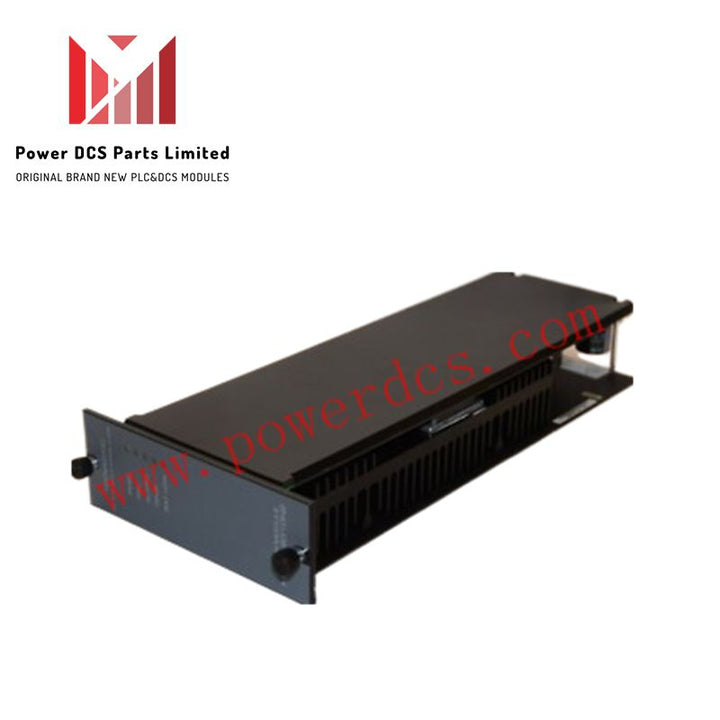

TRICONEX 8310N2 – High-Density Power Module

Product Overview

The TRICONEX 8310N2 is a high-density power module engineered by Triconex (Schneider Electric) to supply reliable and fault-tolerant power to safety and control systems. Designed for harsh industrial conditions, it provides regulated voltage and current to Triconex DCS and PLC platforms, ensuring continuous uptime for mission-critical applications.

This module supports hot-swappable installation, allowing maintenance or replacement without shutting down the system. With SIL 2 compliance and IP-rated protection, the 8310N2 offers both safety and operational reliability in demanding environments.

 Technical Specifications

Feature Specification
Model Number 8310N2
Manufacturer Triconex (Schneider Electric)
Product Type High-Density Power Module
Input Voltage 120 VAC/VDC (85–140 VAC / 95–180 VDC)
Output Voltage 6.5 VDC ±1%
Output Current ≥ 27 A at 60°C
Output Power 175 W at 60°C
Form Factor Plug-in module for Triconex chassis
Installation Hot-swappable, rack-mounted
Operating Temperature −40°C to +70°C (−40°F to +158°F)
Humidity Range 5% to 95% RH (non-condensing)
Dimensions 266 mm × 32 mm × 195 mm
Weight 0.8 kg
Safety Rating SIL 2 compliant
Enclosure Protection IP-rated for control panels
