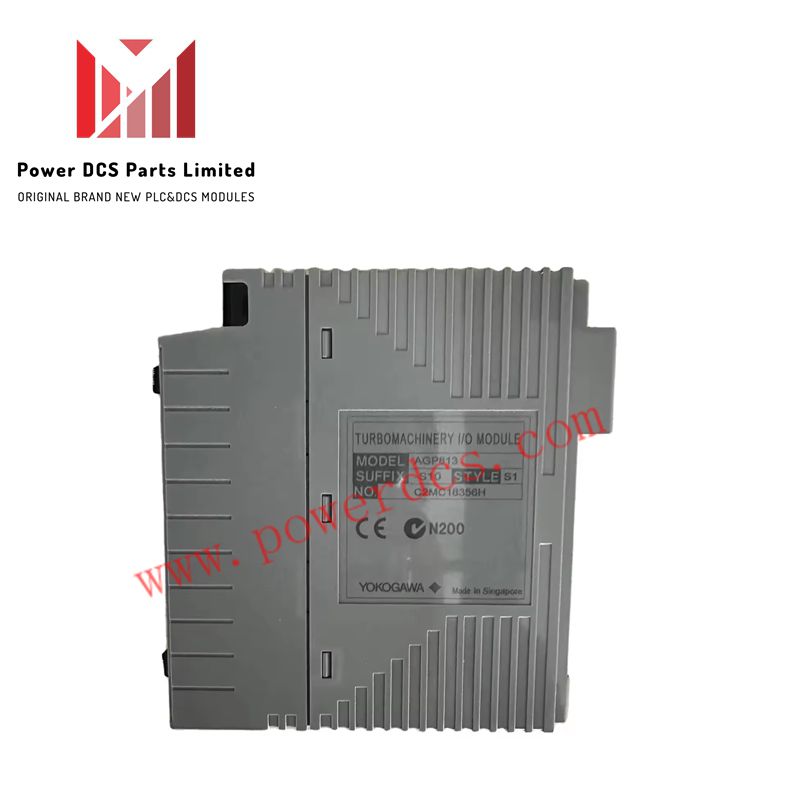

Yokogawa AGP813-S10 High-Speed Protection Module

Specifications

  • Manufacturer: Yokogawa

  • Product No.: AGP813-S10

  • Condition： 10 Items in Stock

  • Product Type: High-Speed Protection Module

  • Product Origin: Japan

  • Payment:T/T, Western Union

  • Weight: 280g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Yokogawa AGP813-S10 – High-Speed Protection Module

Product Overview

The Yokogawa AGP813-S10 is a high-speed protection module engineered for time-critical industrial applications such as turbine control, motor protection, and process fault isolation. With rapid signal processing, strong electrical isolation, and versatile I/O interfaces, it ensures dependable performance in power generation, chemical processing, and refinery operations.

Its high-speed scan cycle and seamless integration with Yokogawa CENTUM CS and CENTUM VP control systems make it a reliable choice for mission-critical safety applications.

 Technical Specifications

Feature Specification
Model Number AGP813-S10
Manufacturer Yokogawa Electric Corporation
Product Type High-Speed Protection Module
System Compatibility CENTUM CS, CENTUM VP control systems
Analog Inputs 4 high-speed (1–5 V DC, isolated), 6 basic cycle (1–5 V DC, isolated)
Pulse Inputs 4 basic cycle (isolated), 10 kΩ impedance
Magnetic Pickup Inputs 0.5–150 Vpp, 50 Hz–25 kHz, ±0.05% accuracy
Active Pickup Inputs TYPE1: 2.0–24 V (VH), 0–0.8 V (VL); TYPE2: 2.4–24 V (VH), 0–1.2 V (VL)
Frequency Range 0.04 Hz to 2 kHz
Digital Inputs (SOE) 4 high-speed, 8 basic cycle (isolated), 24 V DC sink type
Digital Outputs 4 high-speed, 8 basic cycle (isolated), sinking, 100 mA max
Scan Cycle 5 ms (high-speed), 10 ms (basic)
Power Consumption 900 mA at 5 V DC
Withstanding Voltage 500 V AC for 1 min (system-to-field and I/O isolation)
Dimensions 144 × 100 × 30 mm
Weight 0.28 kg
Installation Notes Requires AKB337-M005/M007/M010 cables; adjacent slots for redundancy
Country of Origin Japan
