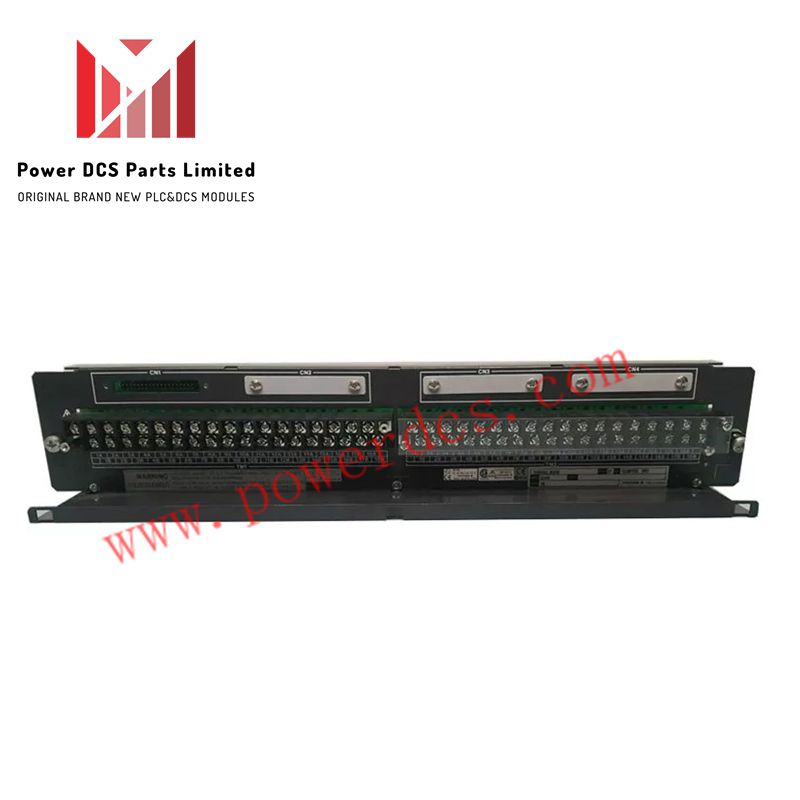

Yokogawa MUD*A General-Purpose Terminal Board
Specifications
Manufacturer: Yokogawa
Product No.: MUD*A
Condition： 10 Items in Stock
Product Type: general-purpose terminal board
Product Origin: Japan
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
Product details
Description
Yokogawa MUD*A – General-Purpose Terminal Board
Product Overview
The Yokogawa MUD*A is a general-purpose terminal board engineered for reliable connectivity in industrial automation and process control systems. Designed to interface field signals with Yokogawa I/O modules such as ADM, AMM, and ADV series, this board provides secure wiring, robust isolation, and long-term durability.
With a compact footprint and rugged construction, the MUD*A is widely applied in DCS, SCADA, and building automation systems, ensuring seamless integration between control hardware and field devices.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | MUD*A |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Terminal board |
| Application | Industrial automation, process control, DCS |
| Number of Terminals | 32 screw-type terminals (up to 64 wire points) |
| Terminal Type | Screw terminals |
| Wire Gauge Compatibility | 24 AWG to 14 AWG |
| Current Rating | Up to 3 A per terminal |
| Voltage Rating | Up to 250 V AC/DC |
| Insulation Resistance | ≥ 100 MΩ @ 500 V DC |
| Withstanding Voltage | 500 V AC |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Humidity Range | 10% to 95% RH (non-condensing) |
| Vibration Resistance | 0.5 mm P-P (0–14 Hz), 2 m/s² (14–100 Hz) |
| Shock Resistance | 5 g for 11 ms |
| Dimensions | 100 mm × 75 mm × 25 mm (3.94 in × 2.95 in × 0.98 in) |
| Weight | 200 g (7.05 oz) |
