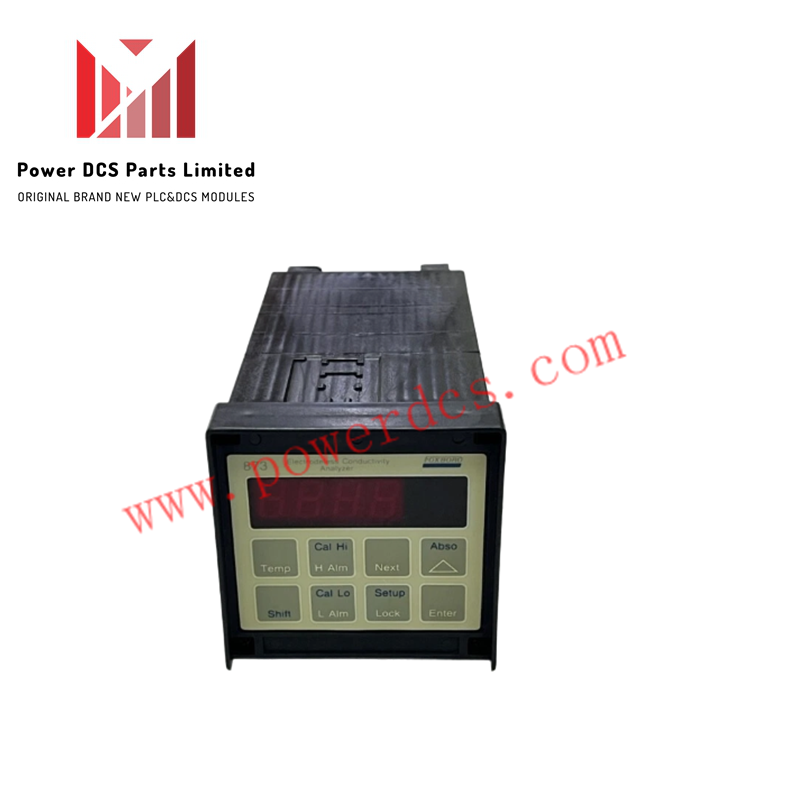

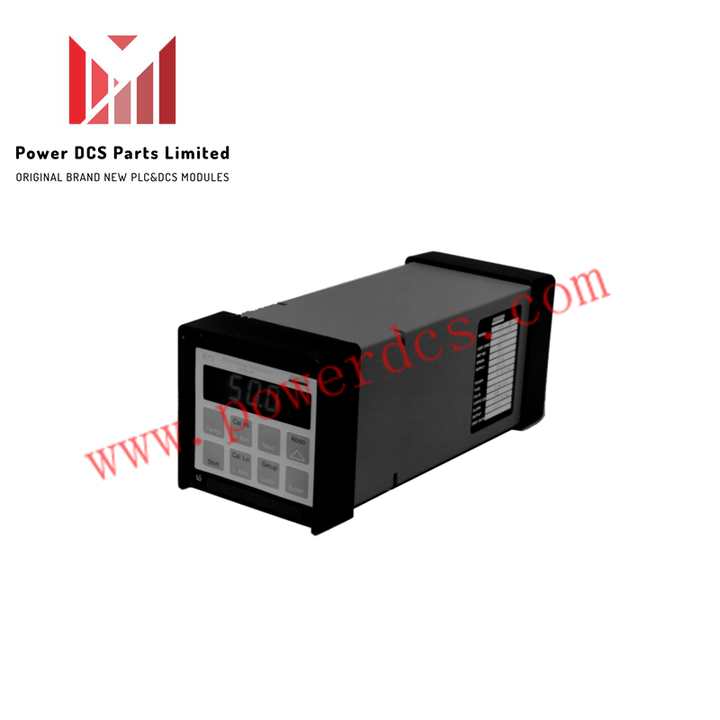

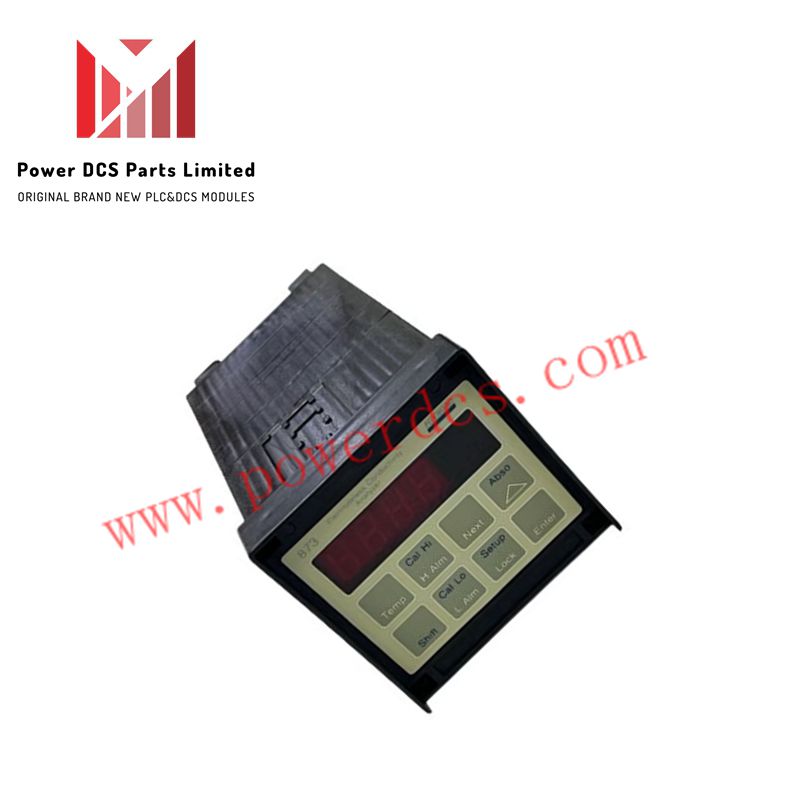

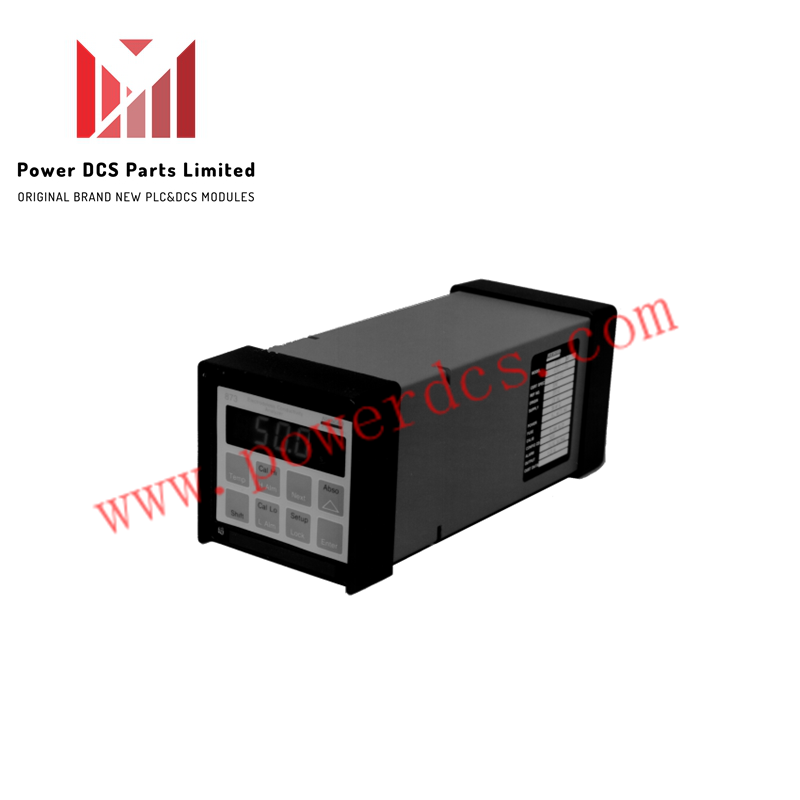

Foxboro 873EC-BIYFGZ Electrochemical Analyzer

Description

The Foxboro 873EC-BIYFGZ Electrochemical Analyzer is engineered for electrodeless conductivity measurement in industrial liquid analysis. It delivers precise readings and integrates easily into chemical, water, and pharmaceutical systems.

Specifications

• Model: 873EC-BIYFGZ

• Measurement Type: Electrodeless conductivity

• Conductivity Range: 0–2000 mS/cm

• Accuracy: ±1% of reading

• Temperature Compensation: Automatic via PT1000 sensor

• Operating Temperature: –10°C to +60°C

• Power Supply: 24 VDC

• Communication Interface: Modbus RTU

• Display: LCD with backlight

• Enclosure Rating: IP65

• Dimensions:

  • Height: 250 mm

  • Width: 180 mm

  • Depth: 120 mm

• Weight: 3 kg

Features

• High Precision Measurement: Delivers accurate conductivity readings across wide ranges

• Automatic Temperature Compensation: PT1000 sensor ensures stable performance

• Industrial Communication: Supports Modbus RTU for seamless system integration

• Durable Enclosure: IP65 rating protects against dust and water ingress

• Clear Display Interface: Backlit LCD enhances visibility in low-light conditions

• Compact Form Factor: Fits easily into control panels and field installations

• Versatile Applications: Ideal for chemical processing, water treatment, and pharma operations
