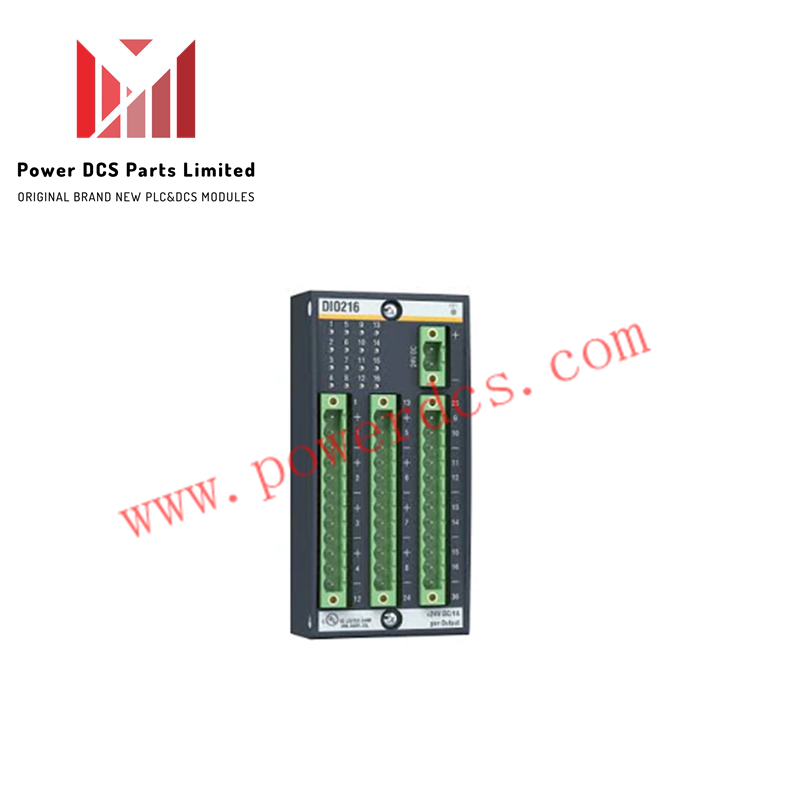

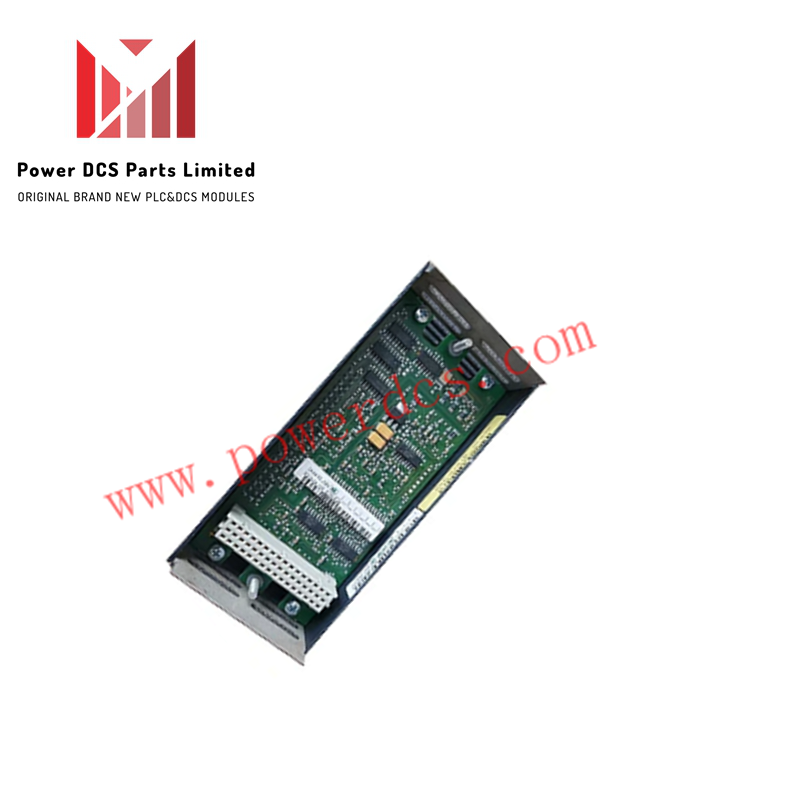

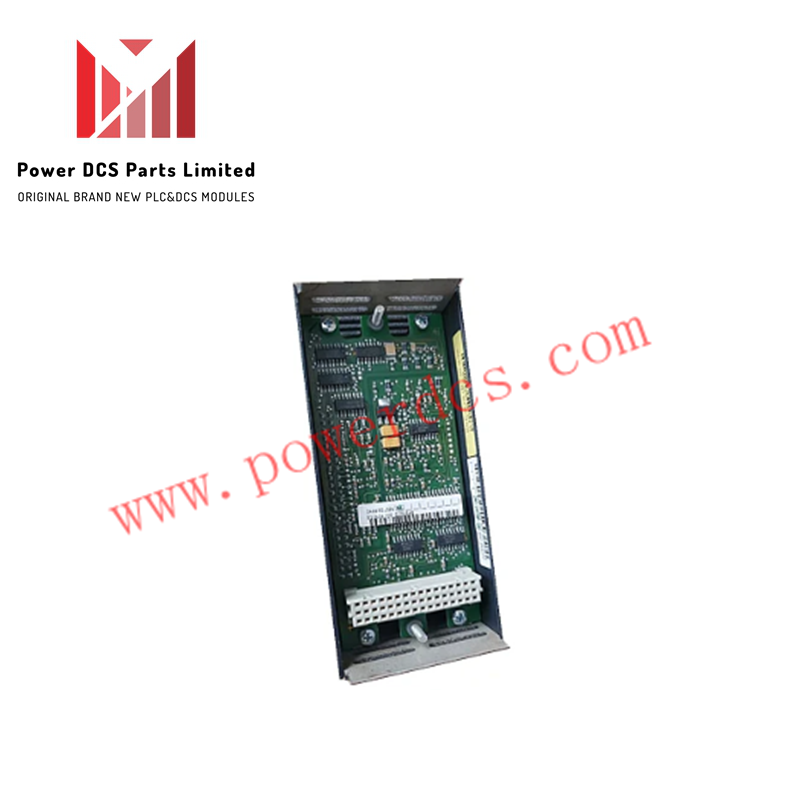

Bachmann DI0216 Digital Input/Output Module

Description

The Bachmann DI0216 is a high-performance digital input/output module designed for industrial automation systems. It supports up to 16 inputs and 16 outputs with fast switching and robust electrical isolation.

Specifications

• Model: DI0216

• Manufacturer: Bachmann electronic GmbH

• Input Channels: Max. 16

• Input Voltage Range (High): 15 to 34 VDC

• Input Voltage Range (Low): 0 to 5 VDC

• Input Delay: Typically 600 μs

• Internal Resistance: 6.8 kΩ

• Interrupt Inputs: 1

• Output Channels: Max. 16

• Output Voltage Range: 18 to 34 VDC

• Max Output Current per Channel: 1 A

• Total Output Current: Max. 12 A

• Switching Frequency (Ohmic Load): Up to 1 kHz

• Status Indication: Green LED for inputs and outputs

• External Power Supply: Reverse polarity protection included

• Galvanic Isolation: 500 V from system

• Operating Temperature: -30°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity (Operation): 5% to 95% without condensation

• Humidity (Storage): 5% to 95% with condensation

• Pollution Degree: Level 2 (IEC 60664-1)

• Dimensions: 5.4 cm × 11.8 cm × 7.0 cm

• Weight: 0.3 kg

• Certifications: CE, cULus, CCC, DNV GL, LR, ABS, BV

• Country of Origin: Austria

Features

• High-Density I/O: Supports 16 digital inputs and 16 outputs for flexible control

• Fast Response Time: 600 μs input delay and 1 kHz switching for real-time performance

• Robust Isolation: 500 V galvanic separation ensures safe operation

• Marine Certified: Approved for use in maritime environments by multiple agencies

• Compact Design: Small footprint fits easily into control cabinets

• Reliable Status Monitoring: Green LEDs provide clear visual feedback for each channel

• Environmental Resilience: Operates across wide temperature and humidity ranges
