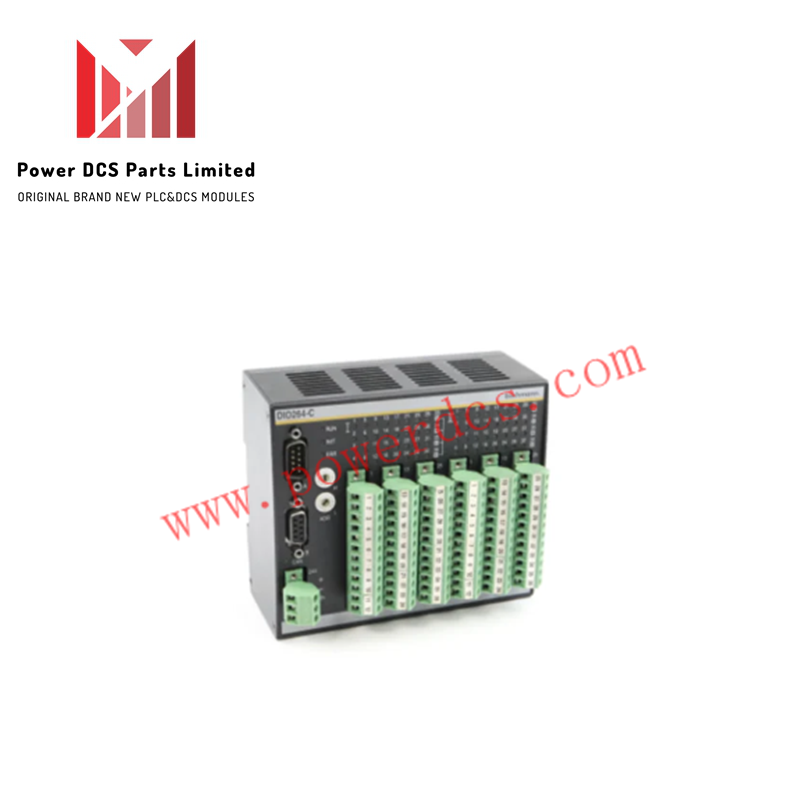

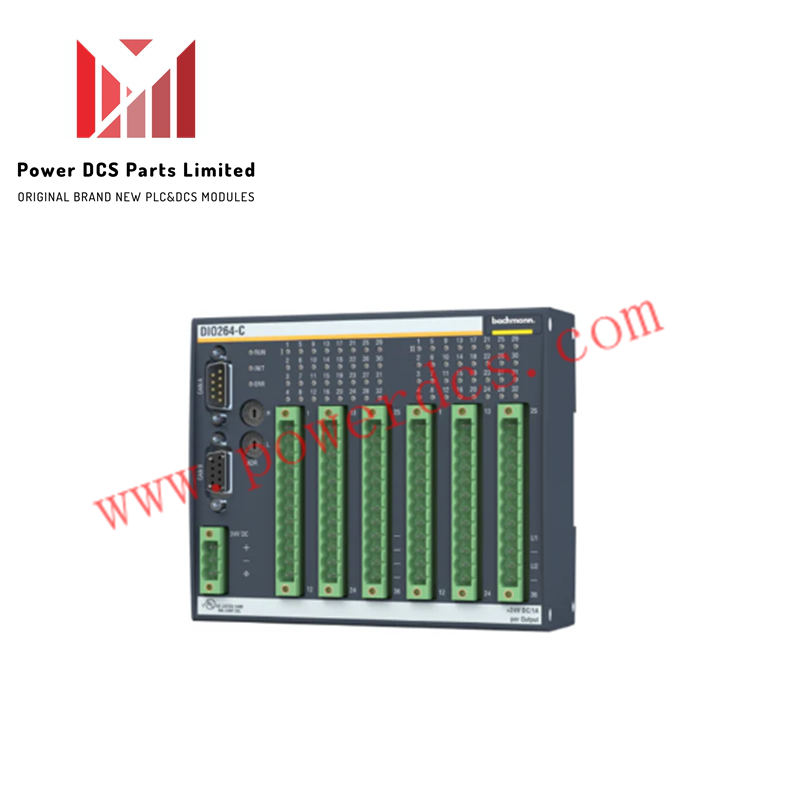

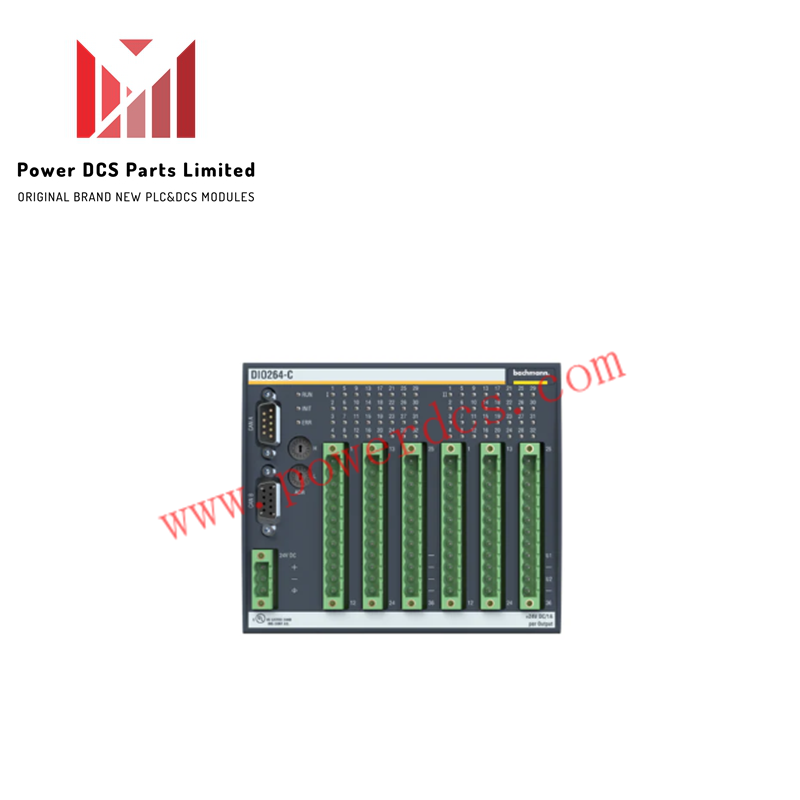

Bachmann DIO264-C CAN Slave Digital Input/Output Module

Description

The Bachmann DIO264-C is a compact CAN slave digital input/output module designed for distributed automation systems. It offers high-density I/O, flexible configuration, and robust CAN communication for industrial environments.

Specifications

• Model: DIO264-C

• Manufacturer: Bachmann electronic GmbH

• Digital Channels: Up to 64, freely configurable as inputs or outputs

• Input Voltage: 24 VDC

• Output Current: 1 A per channel

• CAN Interfaces: 2 internally connected ports for loop-through

• Power Supply: 18–34 VDC

• Mounting: Snaps onto EN 50022 DIN rail

• Operating Temperature: 0°C to +60°C

• Isolation: Galvanic isolation between CAN and control electronics

• Configuration: Node ID and baud rate set via rotary switch

• Wiring: Full wiring without additional backplanes

• Certifications: CE, cULus, CCC

• Country of Origin: Austria

Features

• High Channel Density: Supports up to 64 digital I/O points in a single module

• Flexible I/O Assignment: Each channel can be independently configured as input or output

• Robust CAN Communication: Dual CAN ports ensure reliable data exchange and easy daisy-chaining

• Industrial Durability: Operates reliably in harsh environments with full electrical isolation

• Tool-Free Setup: Rotary switches simplify address and baud rate configuration

• Compact Design: Saves space while delivering extensive I/O capabilities

• Seamless Integration: Ideal for decentralized control in Bachmann automation systems
